Sand Drying Line
•Capacity: 3-110 t/h
•Heat Source：Suitable for biomass, natural gas, diesel, coal, etc.
•Sand Drying Plant Applications: Silica Sand，Foundry sand, Quartz sand, Garnet sand, Emery, Kuala kangsar, Sand, River sand, Sea sand，Fly ash, Mineral Slag Etc.
•Advantages:15+ Years Sand Drying Equipment Manufacturer, CE & ISO Certified Factory with Overseas Engineer Technical Support ，Offer One-stop Solutions.
Sand Drying Plant Introduction

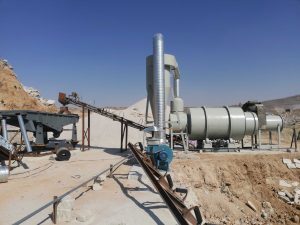

Drying → Collecting Dust → Screening
Drying: Through disk feeder and wet sand belt conveyor, feed wet sand from moist-material bin to rotary dryer for drying, heated by gas combustion chamber.
Collecting Dust: The dust producing in the process of drying will be collected by dust removal system and cyclone dust collector, fall down to the dry sand belt conveyor. The dry sand will be delivered to the linear vibrating screen for screening.
Screening: The dry sand conveyed by dry sand bet conveyor is screened into different size of sand according to customer’s requires.
Sand Drying Equipments Working principle

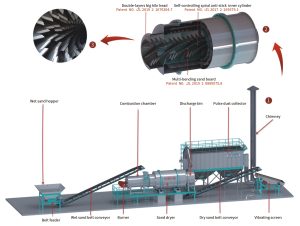

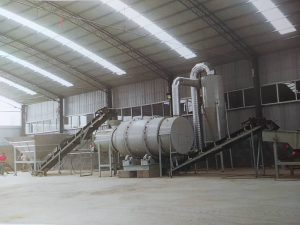

The sand drying line consists of a feeding unit, a drying host, and dust removal and discharge equipment. Wet sand is fed into the drum at a uniform speed via a conveyor. Inside the drum, the lifting plates repeatedly lift the sand and gravel as it rotates, forming a material curtain. This allows for thorough counter-current heat exchange with the hot air, resulting in rapid moisture evaporation. The three-pass structure extends the heating time of the material, and the exhaust gas is purified and discharged after dust removal. The entire sand drying line operates continuously and can stably reduce the moisture content of wet sand to below 0.5%.

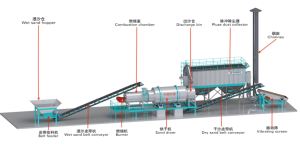

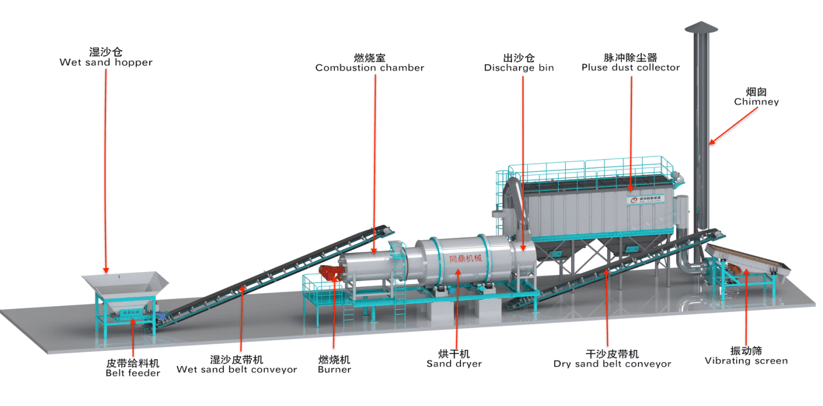

Component Of Sand Drying Line
Multi-Material Matching Sand Drying Production Line
Our sand dryer and full-setsand drying equipment are core devices for industrial material dehydration, covering full sand drying processing procedures. We provide customized sand drying line and integrated sand drying plant, including Dry Sand Plants and Dry Sand Making Plant. Suitable for multiple scenarios: river sand dryer line, sea sand drying line, Silica sand drying line, quartz sand drying line and Quartz Sand Drying Production Line. It also supports Construction sand drying, mining processing and building materials production.
Parameter
As a professional sand drying line manufacture, our full set sand drying equipment covers diverse drying demands: silica sand drying line, sea sand drying line, construction sand drying, casting sand drying line, polymer sand production line, fly ash drying equipment and dry sand plants. All sand drying line for sale adopts triple-pass rotary dryer core, stable running, low energy consumption, widely matched mining, construction, foundry and chemical industries. Whether you need mini Small Sand Drying Plant or large industrial sand drying plant, we customize complete processing flow without extra intermediate markup.
| Model | Power（KW） | Capacity(T/H) | Rotary speed （r/min） | Installation Angle | final Moisture | Heat Supply Mode |
| HG1625 | 4kw | 3-8 t/h | 9 | Aclinic | ≤0.5％ | 1) Firewood 2) Pulverized coal 3) Diesel 4) Natural gas 5) not carbonizedbiomass fuel 6) carbonizedbiomass fuel |
| HG2240 | 7.5kw | 10-15 t/h | 9 | |||
| HG2250 | 7.5kw | 20t/h | 9 | |||
| HG2958 | 5.5kw*4 | 30t/h | 7 | |||
| HG3270 | 11kw*4 | 60t/h | 7 | |||
| HG3890 | 15kw*4 | 100t/h | 7 |
Service And Support
We provide transparent sand drying line price with no middleman markup. Every silica sand drying plant and drying line adopts mature drying technology, ensuring high drying efficiency, stable operation and low energy consumption.
1.Provide customized solution design for global customers, according to raw materials, capacity, local climate and site layout.
2.Supply full set of sand drying equipment with standard export packaging, safe sea/land transportation and smooth customs clearance support.
3.Arrange professional engineers for overseas on-site installation, commissioning and operation training to ensure quick production.
4.Offer complete multilingual documents including English operation manuals, electrical drawings and video tutorials.
5.Support 24/7 remote technical support worldwide for fast troubleshooting and production guidance.
6.Supply original spare parts with global delivery service to reduce equipment downtime.
7.Provide long-term after-sales maintenance, regular follow-up and equipment upgrading services for global clients.
8.Serve customers all over the world with consistent high-quality service.
