Steel slag dryer
Capacity: 5-100t/h
Heat Source：Suitable for biomass, natural gas, diesel, coal, etc
Raw materials:Tongding single rotary dryer perfectly dries sand ,Coal slime, Sludge, Poultry manure，Steel slag, Slurry ,Mineral materials etc.
Service: 15+ Years Industrial dryer Manufacturer，CE & ISO Certified Factory With Overseas Engineer Technical Support—One-stop solution Provider.
Applications:
1.High-moisture, sticky coal-fired power plants:
Coal slime, wet coal slime, washed coal slime, lignite, high-moisture coal slime, flotation coal slime, wet coal gangue, wet coal powder
2. High-viscosity, high-moisture paste-like sludge ：
Municipal sludge, chemical sludge, coal sludge, oil sludge, mineral processing tailings, desulfurization gypsum wet paste and slurry
3. Large, coarse-sized ores/solid waste：
Large limestone, clay ore, bauxite, steel slag lumps, large slag lumps, washed coarse ore, construction waste aggregate
4. Easily entangled, long-fiber biomass：
Wood chips, straw, palm fiber, bagasse, bark, long-fiber medicinal residue, sawdust，long-fiber distiller's grains
5.Livestock and poultry manure organic fertilizers:
chicken manure, wet chicken manure, cow manure, duck manure, pig manure, poultry and livestock waste, fermented manure, high-moisture organic fertilizer raw materials.
6. Highly corrosive chemical raw materials requiring frequent maintenance and cleaning：
Industrial salt, chemical waste residue, acid-washed ore, salt mud, various chemical filter cakes
7.Sand and gravel
Foundry sand, Quartz sand, Garnet sand, Emery, Kuala kangsar, Sand, River sand, Sea sand
Working Principle

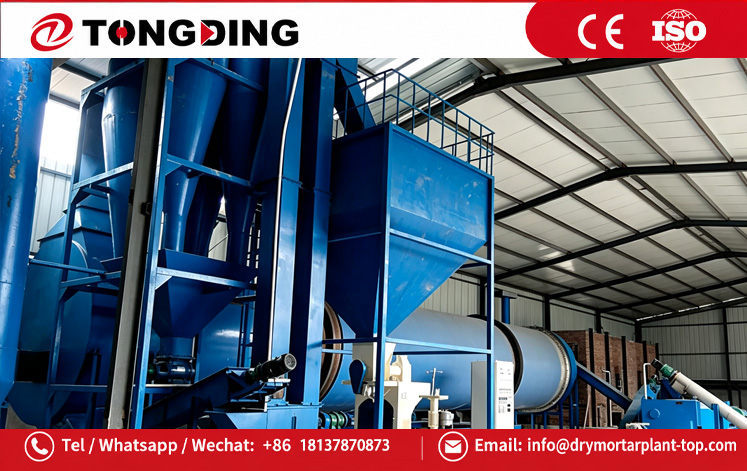

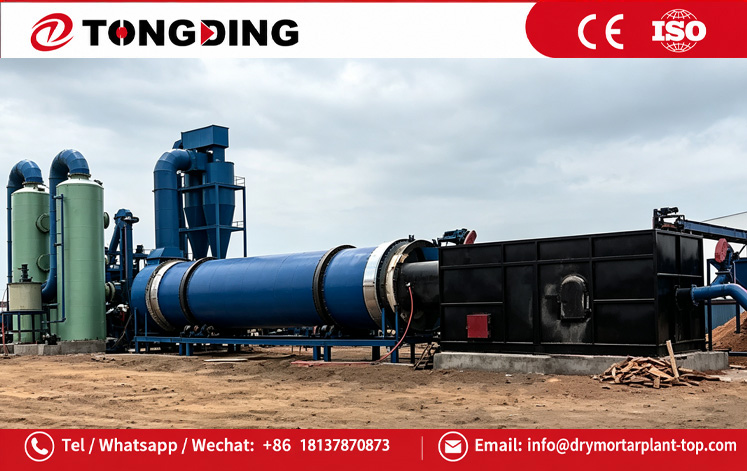

The single-drum dryer is a concurrent-flow drying system composed of a hot-blast stove, belt feeder, rotary drum, belt discharge conveyor, induced draft fan, cyclone dust collector, baghouse dust collector (or wet scrubber), and an operation control system. Its working principle is as follows:
1. In the feed zone, the coal undergoes rapid heat exchange with high-temperature hot air, causing moisture to begin evaporating; the material is then guided by high-angle feed plates into the main processing zone.
2. In the lifting zone, the coal forms a "curtain" of material that makes full contact with the hot air; moisture rapidly evaporates into steam and is extracted by the induced draft fan, thereby drying the coal. In this zone, the coal remains in a loose state, and its moisture content drops to 15% (or lower). After the heat exchange process, the material reaches the target moisture level and is discharged.
3. The discharge zone contains no lifting plates; instead, the material rolls and slides toward the discharge outlet, completing the drying process. The equipment can be customized according to customer requirements.
Advantages of Single-Drum Dryers
1.High-efficiency Combined Lifting Blades: Form a uniform material curtain for high heat exchange efficiency, reducing energy consumption by 1/5. Built-in anti-sticking structure allows flexible adjustment of material residence time.
2.Self-aligning Idlers:
Maintain constant line contact between idlers and riding rings, greatly reducing wear and power loss, and ensuring smoother cylinder operation.
3.Zero Axial Thrust Drive:
Optimized idler and gear design eliminates horizontal thrust, lowering drive power by over 30% for stable and reliable operation.
4.Optimal Speed Matching:
Adopts the best rotational speed adapted to material characteristics for more sufficient heat exchange.
5.High-efficiency Dust Collection & Sealing（Weight Air-lock Discharge Hopper）:
Special dust-collecting end cover ensures excellent dust removal effect. Follow-up sealing device is wear-resistant and temperature-resistant, reducing air volume loss.
6.Anti-sticking & Anti-breakage:
Cylinder vibrating device solves wall buildup of high-viscosity materials; intermediate anti-breakage device reduces material breakage rate by over 50%.
7.Integrated Air Classification:
Materials are directly airclassified and conveyed after drying, simplifying the process and improving environmental conditions.
Specifications
| Model | Capacity | Initial Moisture | Final Moisture | Motor Power |
| φ2.5×22 | 5–35 T/H | 10–26% | 1% | 37 KW |
| φ3×20 | 30–40 T/H | 10–26% | 1% | 55KW |
| φ3.2×32 | 40–50 T/H | 10–26% | 1% | 90 KW |
| φ3.6×36 | 50–70 T/H | 10–26% | 1% | 110 KW |
| φ4×40 | 70–100 T/H | 10–26% | 1% | 160 KW |
Tongding Service And Support
1.Provide customized solution design for global customers, according to raw materials, capacity, local climate and site layout.
2.Supply full set of sand drying equipment with standard export packaging, safe sea/land transportation and smooth customs clearance support.
3.Arrange professional engineers for overseas on-site installation, commissioning and operation training to ensure quick production.
4.Offer complete multilingual documents including English operation manuals, electrical drawings and video tutorials.
5.Support 24/7 remote technical support worldwide for fast troubleshooting and production guidance.
6.Supply original spare parts with global delivery service to reduce equipment downtime.
7.Provide long-term after-sales maintenance, regular follow-up and equipment upgrading services for global clients.
8.Serve customers all over the world with consistent high-quality service.
