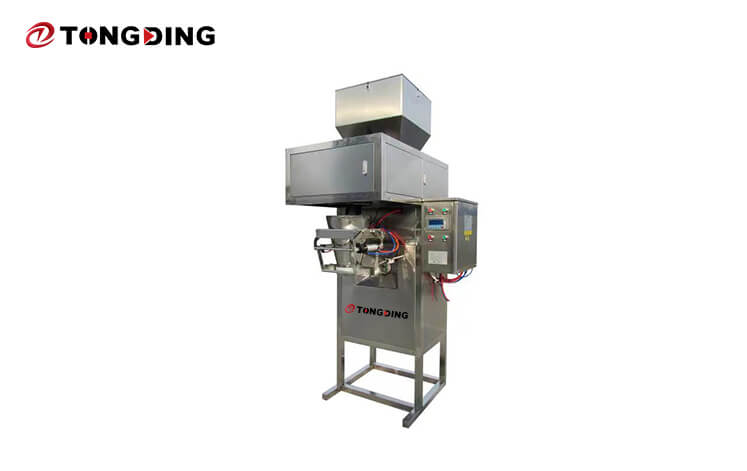

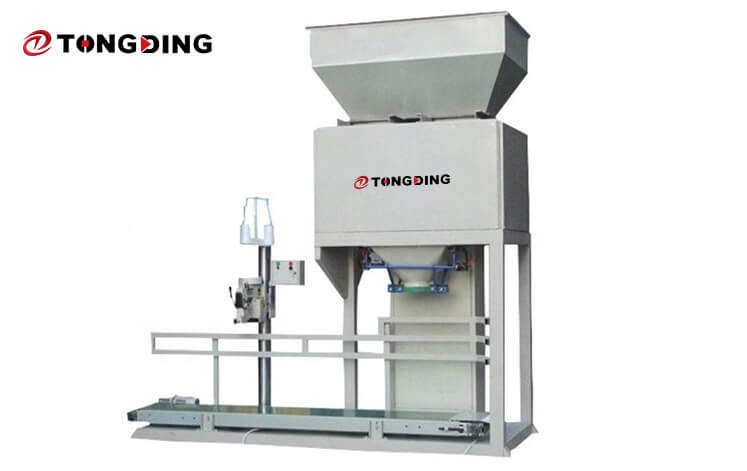

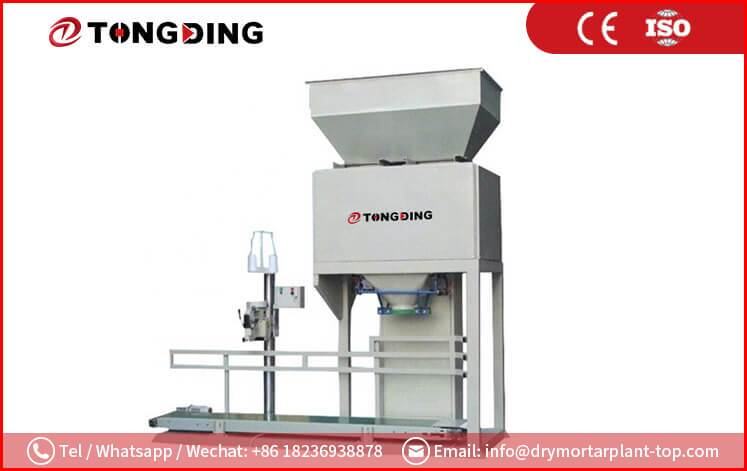

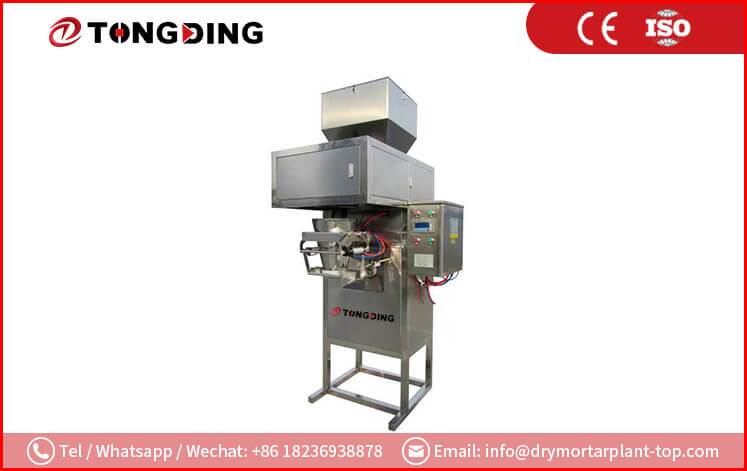

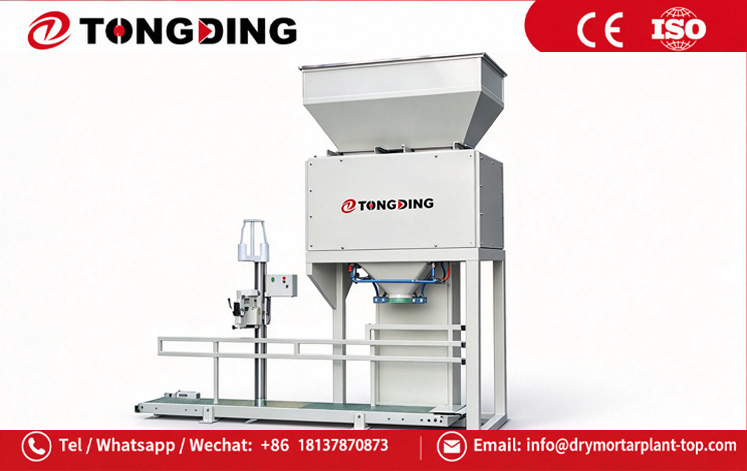

Open bag packing machine

Fully automatic Open bag packaging machine is designed for the automated filling of powder and granular materials, suitable for mass production across various industries.
Output: 100–1,200 bags/hour with precise weighing accuracy.

Bag specifications: 10–60 kg/bag.

Applications: Packaging of dry materials in sectors such as :construction materials, chemicals, agricultural supplies, and food.

Bag materials: Kraft paper, PP woven fabric, PE,and paper-plastic composites.

Bag types: Compatible with various standard Open bag

WhatsApp Get A Quote

Product Introduction

1.Open bag also named Square bottom open bag, surface material: kraft paper or stretch kraft paper, product characteristics are environmentally friendly green. The flat bottom is stable and not easy to leak when filling or filling.

2.It has the characteristics of good environmental protection, high firmness, stable stacking and easy identification.

3.It is mainly used in flour, starch, food and additives, feed, chemicals, plastics Powder and granular products in other industries are widely used in the packaging industry.

Features

1.Automatic weighing and packing system, weighing accurately;

2.Small size and light quality, moving and installation conveniently;

3.Steady performance, easy to operate and maintenance;

4.High automation, labor-saving and increase efficiency.

5.No artificial bagging, save labor costs

Working Principle

1.The automatic weighing and packing machine receives the weight of analog signal by gauge and sensor and convert to figure signal, to control contactor and solenoid vale by relay switching signal to achieve the motor rotation stop and air cylinder operation. The discharge principle is use high-speed rotation of the power head paddles make the material quickly set aside from the discharge port, the internal air blown inside the power head form a high pressure and puff away materials to help paddles disperse the material.

2.According to the pre-set weight, the material is filled, through the belt conveyor, conveying to the sewing machine, sealing.

3.Sewing machine is a automatic sewing sewing machine, automatic tangent multifunctional sewing machine.

4.Matching device: automatic folding machine. If the bag needs to be folded, the folding machine can be selected, and then closed on the sewing machine.

Parameter

Voltage	380V/ 50HZ
Quantity Range	5-50kgs /bag
Packing Speed	120-180 bags/h
Packing Accuracy	±0.2%
Air Source	0.4-0.6Mpa
Air Consumption	0.1 m³/h

FAQ

Q1: What materials can be packaged?
A: Suitable for various powders and granular materials; widely used in industries such as animal feed, grain, construction materials, and chemicals.
Q2: What are the packaging capacity and specifications?
A: Hourly output of 200–800 bags; supports quantitative packaging of 10–60 kg in open-mouth bags with precise, stable weighing.
Q3: Which types of bags are compatible?
A: Compatible with standard open-mouth bags, including woven bags, paper bags, and plastic bags; offers high versatility.
Q4: How are common equipment faults handled?
A: For material leakage, clear any blockages at the discharge outlet; for poor sealing, fine-tune the pressure and temperature, and ensure standard bags are used.
Q5: Is operation and commissioning difficult?
A: Features user-friendly touch-screen controls and supports customizable adjustments for parameters such as weight and speed.
Q6: What is the daily maintenance routine?
A: Regularly clean out residual material and inspect wear parts; ensure dust protection measures are taken when the equipment is shut down.
