What Is a Sand Drying System?

A standard sand drying line comprises the following stages: feeding, drying, screening, dust removal, and conveying/storage; the core component of this system is the triple-pass rotary dryer.

What machines are used in a sand drying line?

A complete sand production line comprises the following machines:

1.Wet Sand Bin (Buffer Hopper): Fed by a wheel loader; stores wet sand.

2.Belt Feeder / Variable Frequency Feeder: Uniform and Quantitative Feeding, Anti-Clogging

3.Belt Conveyor: Conveys wet sand to the feed end of the dryer.

4.Three-Pass Dryer (Triple-Drum): The mainstream choice, featuring high thermal efficiency and a discharge moisture content of ≤0.5%–1%.

5.Heat Source Unit: Burner (Natural Gas / Diesel / Biomass / Pulverized Coal), Combustion Chamber.

6.Pulse Jet Baghouse: The Workhorse—Ensuring Compliant Dust Emissions

7.Cyclone Dust Collector (Primary): Separates large particles first, thereby reducing the load on the filter bags.

8.Induced Draft Fan (Centrifugal Fan): Generates negative pressure suction to create airflow circulation.

9.Vibrating Screen (Circular / Octagonal): Classified by Particle Size (e.g., 0.63 / 1.2 / 2.0 mm)

10.Bucket Elevator (NE Type): Lifts dry sand to the finished product bin / silo.

11.Finished Belt Conveyor: Dry Sand Conveying, Truck Loading / Silo Filling.

12.Dry Sand Storage Silo / Tank: Stores finished product; equipped with a pneumatic discharge valve.

13.PLC Control Cabinet: Centralized control, automatic temperature control, alarm functions, and variable frequency speed regulation.

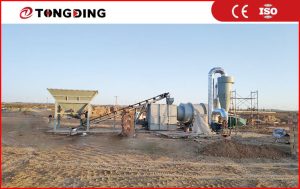

About Tongding sand drying production line

Zhengzhou Tongding Machinery Equipment Co., Ltd is  a professional manufacturer with 15 years of experience specializing in industrial dryer and mixer equipment,Our equipment is widely used in sand processing, mining, construction materials, and chemical industries and so on

Tongding offers different capacities to meet various industrial demands. Whether for small-scale operations or large commercial plants, Tongding can customize equipment configurations according to raw material conditions, fuel types, and production targets.

Our euipment to many countries and has earned a strong reputation for quality manufacturing, professional service, and competitive pricing.

If you are planning to procure a sand drying line or intend to construct a sand drying plant, please feel free to contact us at any time; our technical and sales teams will provide you with the optimal solution, service, and pricing.
