Why three-pass rotary dryers have surpassed single-drum dryers to become the ideal choice for sand drying
Three‑pass rotary dryers are now widely preferred over traditional single‑drum dryers for industrial sand drying projects. Thanks to its nested three‑drum structure, this dryer delivers higher thermal efficiency, lower fuel costs and more uniform moisture output. It also cuts installation footprint greatly while maintaining stable high throughput. Below we break down the key practical reasons why more sand processing plants choose three‑pass rotary dryers for daily production.
Difference between three-pass rotary dryers and single-drum dryers

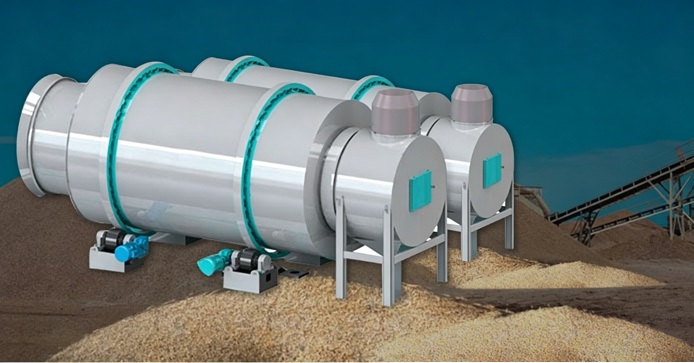

The core difference between a three-pass rotary dryer (three-pass dryer) and a single-drum dryer lies in their internal structure and thermal efficiency. A three-pass dryer consists of three nested cylinders (inner, middle, and outer), allowing for a long material travel distance within the cylinder, resulting in high thermal energy utilization and a small footprint. It is particularly suitable for large-scale continuous production of fine-particle materials such as sand. In contrast, a single-drum dryer has a simpler structure with only one cylinder. While it has lower investment costs and is easier to maintain, it suffers from greater heat loss, higher energy consumption, and a larger overall size.
Advantages of three-pass rotary dryers compared to single-drum dryers
The three-channel rotary dryer (three-pass dryer) offers significant advantages over a single-drum dryer:
♦High thermal efficiency: The three-layer cylinder provides self-insulation, achieving a thermal efficiency of 70%-90%, saving approximately 2/3 of coal compared to a single-drum dryer.
♦Smaller footprint: The equipment length is only 1/3 of a single-drum dryer with the same output, saving over 50% in civil engineering investment.
♦Higher output: Particularly suitable for large-scale continuous production of fine-particle materials such as sand dryers, resulting in lower overall operating costs.
Application of three-pass dryers
Three-pass dryers (three-pass rotary dryers) have a wide range of applications, mainly including:
♦Building materials and sand and gravel industry: Drying yellow sand, river sand, quartz sand, etc., making it an ideal sand drying equipment; also used for drying raw materials such as dry-mixed mortar, cement plant slag, and clay.

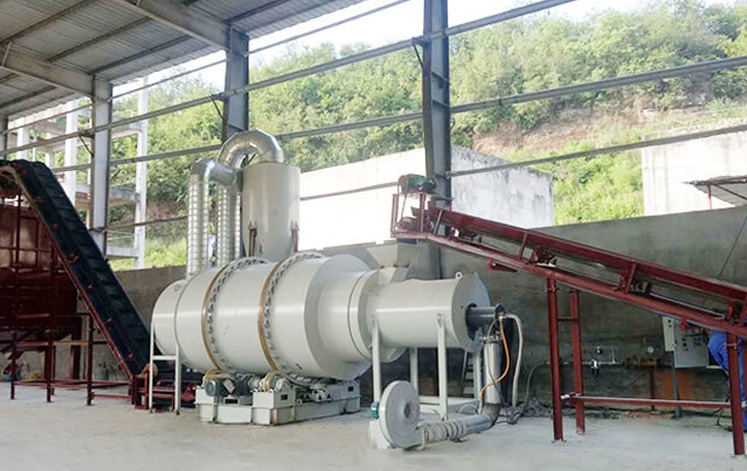

♦Chemical and metallurgical industry: Processing bulk materials such as blast furnace slag, steel slag, fly ash, desulfurization gypsum, and carbide slag.
♦Other fields: Also used for drying biomass materials such as sawdust, straw, distiller’s grains, and forage.
Why choose Tongding three-pass rotary sand dryer?
Choosing Tongding’s three-channel rotary sand dryer guarantees your investment in three aspects:
♦Service: We provide free full-service support from on-site planning and solution design to installation, commissioning, and operation training. Customer service outlets are located in multiple cities nationwide, ensuring timely after-sales response.
♦Quality: Core components utilize Baosteel NM400 wear-resistant plates and forged steel support rollers, extending the lifespan of key components by 4-7 times. Exhaust temperature is precisely controlled at 70℃, and sand outlet temperature at 60℃, guaranteeing stable drying quality.
♦Factory Strength: Founded in 2010, Tongding is a national high-tech enterprise and a provincial specialized and innovative enterprise. Holding 126 patents (including 26 invention patents), it is a top manufacturer in the sand and gravel dryer industry, with products exported to many countries.
Conclusion
Tongding’s three-pass rotary dryer, with its high-efficiency energy-saving technology, wear-resistant quality, and specialized innovation capabilities, helps you reduce costs and increase efficiency. From solution design to after-sales service, we provide worry-free support. Choose Tongding, and win the future together! Welcome to call or visit us; we will customize the optimal drying solution for you.
