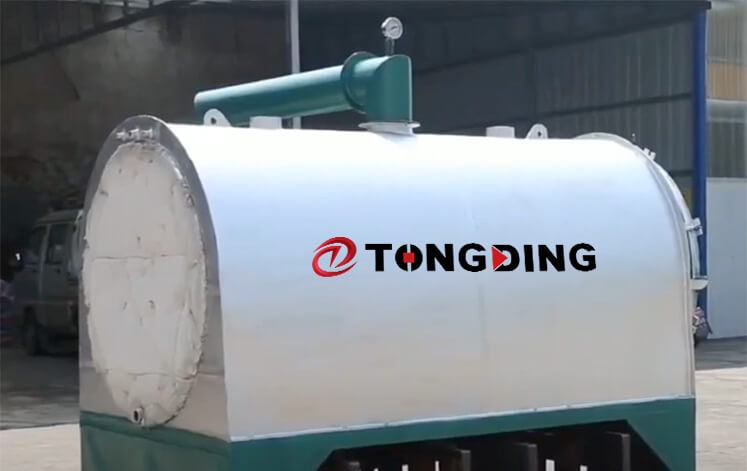

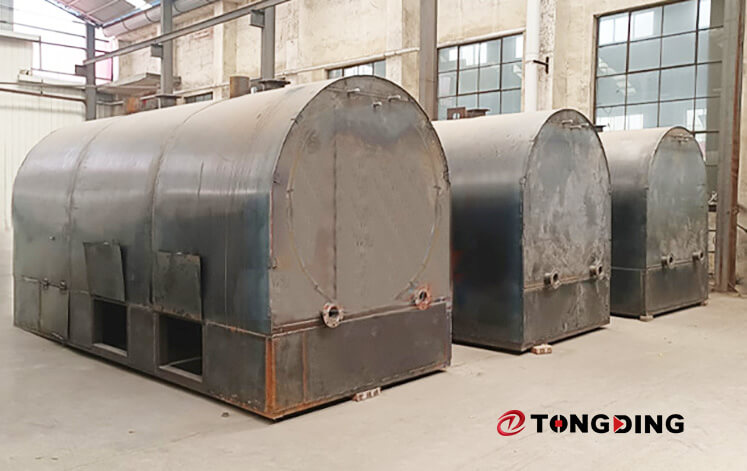

Biomass Carbonization Furnace

Capacity: 300-1000 kg/8h

Heat Source：

Application: Widely use for wood, logs, mechanism charcoal, shells, bamboo and other different shapes of biomass raw materials carbonized.

Send E-mail Inquiry Now

Product Introduction

The biomass dry distillation carbonization furnace is one of TongDing's new model products that incorporates an advanced thermal dry distillation carbonization technology. This technology significantly improves the carbonization rate from 85% to 98%, making the machine an easy-to-operate, safe, environmentally friendly, and highly productive equipment. Furthermore, it helps save a lot of energy, making it an ideal equipment for coal, gas, oil, power plants, etc. The hoisting composite structure is used for more sets of combined distillation carbonization furnaces, which utilizes the hanging method for cooling to shorten the production time and improve the efficiency of charcoal production. Additionally, the furnace features a unique carbon gas back-burning technology, which recycles the volatile hydrogen material and tar, among other materials.

Working Principle

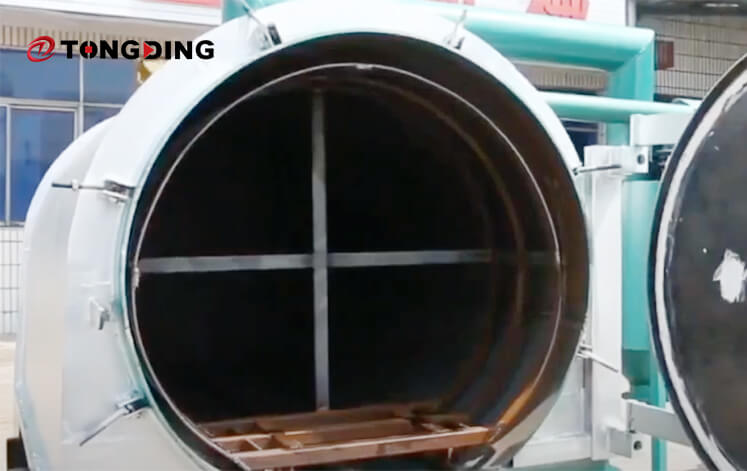

The TongDing biomass dry distillation carbonization furnace comprises a furnace body, furnace cover, inner tank, material cage, combustible gas return pipe, exhaust pipe, flue gas dust removal device, tank lifting device, and thermometer. The furnace utilizes the principle of anaerobic dry distillation to eliminate volatile substances from biomass and attain the goal of biomass carbonization.

Parameter

Model	Capacity(m³)/ Carbonization time	Length(m)	Width(m)	Internal Diameter(m)	Internal Length(m)	EXW Price(USD)	Purifier Price(USD)	Material	With Purifier
TDW12	1.2/6h	1.9	1.15	1.7	0.95	1400	300	Carbon steel	No
TDW30	3/7h	1.9	1.7	1.7	1.5	2600	300
TDW47	4.76/7h	2.9	1.7	2.7	1.5	4800	500
TDW76	7.65/9h	2.9	2.2	2.7	1.9	7600	500
TDW10	10.48/10h	3.9	2.2	3.7	1.9	9100	0		Yes
TDW15	15.86/12h	5.8	2.2	5.6	1.9	12000	0		Yes
