Single Drum Rotary Dryer
Capacity: 20-400 t/d
Heat Source：Suitable for biomass, natural gas, diesel, coal, etc.er heat sources.
Application: Widely used for drying sawdust, wood chips, pasture, wood shavings, straw and other materials etc.
Product Introduction
Single drum rotary dryer as know as single cylinder dryer. It is used in food, feed, fertilizer, chemical, pharmaceutical, Single drum rotary dryer, also known as a single cylinder dryer, is utilized in various industries such as food, feed, fertilizer, chemical, pharmaceutical, and mining, depending on specific drying requirements. Different heat sources are available for this dryer, such as direct heating models like hot blast stoves, indirect hot blast stoves, heat conduction oil, electric heating, and steam, among others. This dryer is suitable for drying materials with a moisture content of less than 65%.
The single drum rotary dryer mainly comprises a heater, feeding machine, rotary drum, discharging machine, induced draft fan, unloading feeder, cyclone, odor removal equipment, and power distribution cabinet. Wet materials are uniformly distributed in the drum using a copy board agitator, allowing for uniform dispersion and full contact with the hot air furnace. The wet material is then fully dried.
The single drum rotary dryer offers several advantages, including:
1.High mechanization degree and large production capacity for continuous operation.
2.The dryer runs smoothly and is easy to operate.
3.With a low failure rate, low maintenance cost, and low power consumption.
4.Has a wide range of applications and provides an excellent drying effect.

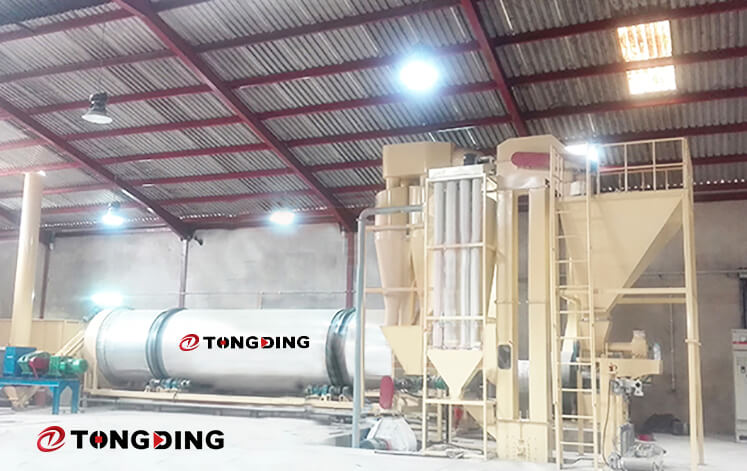

Layout Reference
Working Principle
The single drum rotary dryer is comprised primarily of a heater, feeding machine, rotary drum, discharging machine, induced draft fan, unloading feeder, cyclone, odor removal equipment, and power distribution cabinet. Wet materials are fed into the drying machine and are uniformly distributed throughout the drum via the copy board agitator. This allows for uniform dispersion and full contact with the hot air furnace, resulting in the thorough drying of the material.
Parameter
|
Model |
Capacity(t/d) |
Water Evaporation(t/h) |
Total Power(kw) |
Floor Area(m²) |
Initial Moisture(%) |
Final Moisture(%) |
Drying Temperature(℃) |
|
TDBPG45 |
20-45 |
0.565 |
28-33 |
5m×15m |
35-60% |
12-15% |
270±30℃ |
|
TDBPG65 |
25-65 |
0.792 |
34-40 |
5m×18m |
|||
|
TDBPG90 |
40-90 |
1.130 |
45-60 |
6m×22m |
|||
|
TDBPG125 |
50-125 |
1.61 |
51-75 |
7m×25m |
|||
|
TDBPG220 |
70-220 |
2.20 |
60-90 |
8m×30m |
35-65% |
320±30℃ |
|
|
TDBPG320 |
90-320 |
3.25 |
95-125 |
10m×35m |
