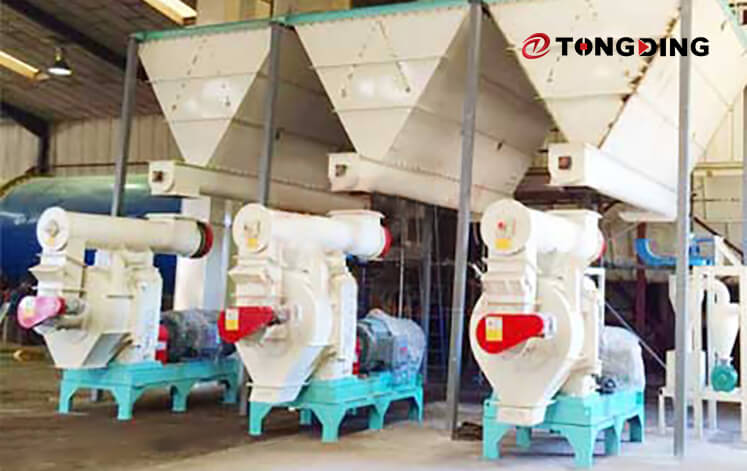

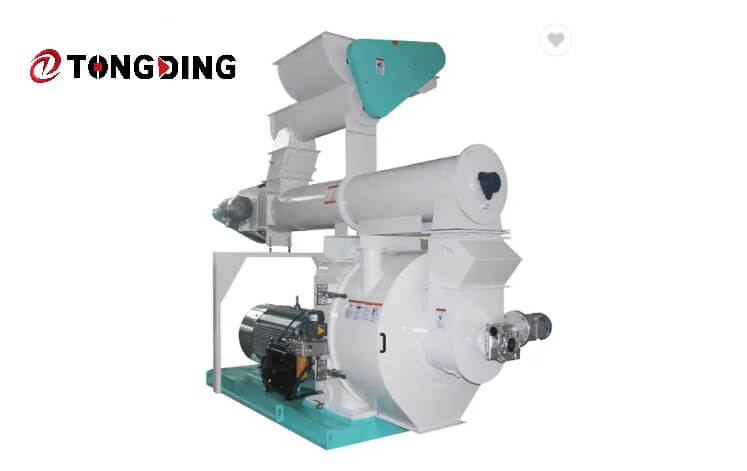

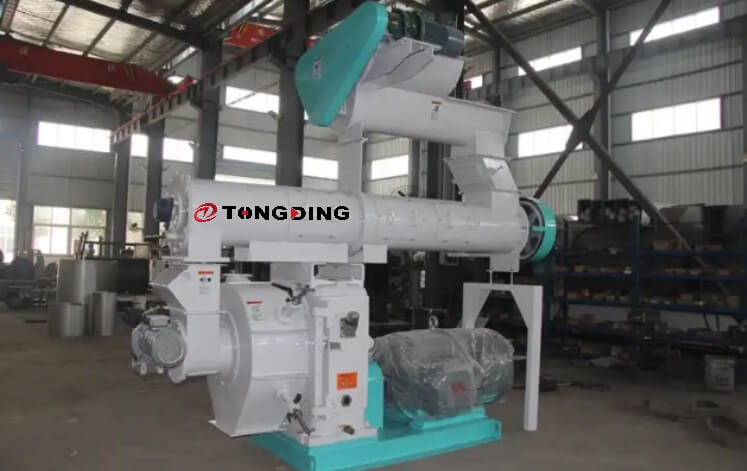

Biomass Pellet Mill
Capacity: 0.7-1.8 t/h
Heat Source：
Application: Suitable for wood chips、straws, branches, straw, bamboo, leaves, wood brick, barks, etc.
Product Introduction
The biomass ring-die pellet mill is a pioneering product designed by Dingli's technical team. Its unique mold design and wear-resistant alloy material for the press rollers ensure that the wearing parts have a significantly longer working life compared to similar products. The transmission structure also features automatic grease filtering, further enhancing its durability. The product has a unique design, proper structure, low energy cost, and strong wear resistance, filling the technical gap in domestic vertical ring-die pellet feeding equipment.
This palletization equipment is suitable for materials that are typically challenging to mold and bond, such as rice husk, sunflower seed husk, peanut shells, branches, trunks, wood rind, crop straw, rubber, cement, ash, and other chemical materials. The resulting pelletized product finds applications in biomass fuel plants, power plants, timber processing plants, fertilizer plants, and chemical plants. This equipment is a highly satisfying compression molding solution, offering low capital cost, quick profits, and minimal risk.
Working Principle
1.The main transmission gears offer high precision, while the pellet mill dies adopt a quick-release package type hoop. This design provides an efficiency that is about 20% higher than belt drives.
2.The entire transmission system of the machine is composed of high-quality imported bearings and oil seals, ensuring efficient, stable, and low-noise transmission.
3.The compensation type snake-like spring coupling is internationally advanced, unique, compact, safe, and stable.
4.Through material selection and a heat treatment process, the working strength of the main parts has been increased to produce expected pellet products.
5.Our ring-die pellet mill has gained a national invention patent for its improvements on ring die anti-cracking, high capacity, and long lifetime.
6.Equipped with a non-stop refueling system and an air cooling system, our product offers high efficiency, low energy costs, steady operation, and excellent pellet quality.
Parameter
|
Model |
Power(kw) |
Capacity(t/h) |
Ring Model Diameter(mm) |
Particle Size (mm) |
|
TDBPM07 |
55 |
0.7 |
350 |
Φ2-Φ18 |
|
TDBPM10 |
75/90 |
1.0 |
400 |
Φ2-Φ18 |
|
TDBPM13 |
90/110 |
1.3 |
420 |
Φ2-Φ18 |
|
TDBPM18 |
110/132/160 |
1.8 |
508 |
Φ2-Φ18 |
