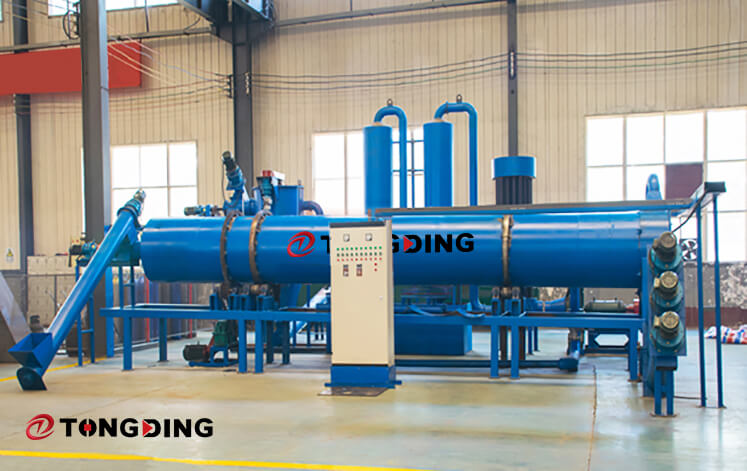

Continous Charcoal Powder Plant
Capacity: 100-1500 kg/h
Application: Widely used for all kinds of agricultural and forestry biomass charring making. For example, sawdust, wood chip, wheat straw, rice straw, rice husk, cotton stalk, straw, etc.
Product Introduction
In order to protect the environment and meet environmental protection standards, our company offers a new type of rotary continuous carbonization equipment that is smokeless, environmentally friendly, highly efficient, and energy-saving. This equipment addresses the serious issue of environmental pollution caused by the traditional carbonization furnace and effectively transforms waste into economic benefits.
The environmentally friendly drum continuous carbonization machine utilizes a carbonization process that converts flue gas into combustible gas, which is then recycled and reused. With continuous 24-hour production, this machine boasts zero pollution, zero emissions, labor savings, high capacity, low energy consumption, advanced technology, high degree of automation, and is suitable for large-scale production. It also offers advantages such as a high carbonization rate, high carbon production rate, energy savings, environmental protection, and high efficiency.
Layout Reference
Working Principle
To begin, the biomass material is ignited in the gasifier. After the burning process, flue gas is produced, which is then subjected to spraying, cooling, and purification processes to generate pure combustible gas, such as carbon monoxide, methane, and ethane. This pure combustible gas serves as the initial heat source for the carbonization process, allowing for the heating of the material to a specific temperature before feeding. The flue gas generated during carbonization is also subjected to spraying, cooling, and purification processes before being burned for a second time. Through this cycle, the equipment achieves self-sufficiency and energy efficiency. Furthermore, the purified flue gas meets environmental production standards and is free from emissions, satisfying the requirements for waste gas disposal. The carbonization temperature ranges between 600 ℃ to 900 ℃, and it can be adjusted based on the material's characteristics and requirements.
Parameter
|
Model |
Inner layer diameter(mm) |
Outer layer diameter(mm) |
The drum length(m) |
Carbon capacity(kg/h) |
Power(kw) |
Dimension(m) |
|
TDLL300 |
1000 |
1000 |
12 |
300 |
30-40 |
12*1.0*1.0 |
|
TDLL500 |
1300 |
1300 |
12 |
500 |
40-50 |
12*1.3*1.3 |
|
TDLL700 |
1600 |
1600 |
12 |
700 |
50-70 |
12*1.6*1.6 |
|
TDLL1000 |
1200 |
2000 |
12 |
1000 |
70-80 |
12*1.2*10*2.0 |
|
TDLL1500 |
1400 |
2200 |
12 |
1500 |
90-110 |
12*1.4*10*2.2 |
|
TDLL2000 |
1600 |
2400 |
12 |
2000 |
110-130 |
12*1.6*10*2.4 |
|
TDLL2500 |
1900 |
2700 |
12 |
2500 |
130-150 |
12*1.9*10*2.7 |
