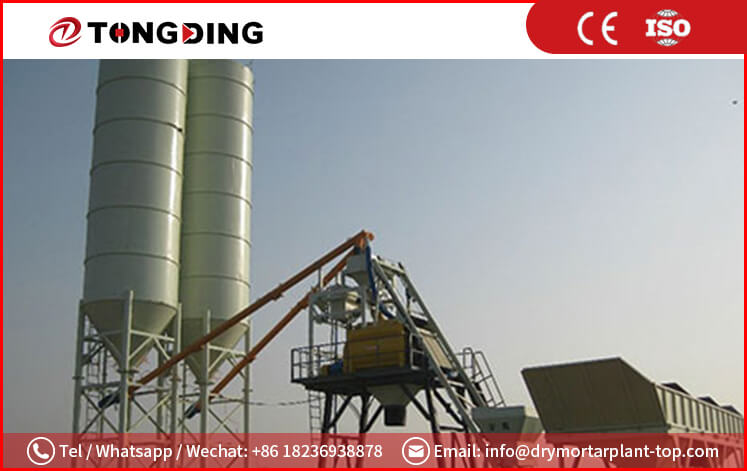

HZS25 Concrete Mixing Plant
Theoretical production capacity: 25m³/h
Dimensions: 11693x13060x17245mm
Mixer Model：JS500
Dosing machine model: PLD1200
Total power: 52Kw
Standard discharging height：1.5-3.8m
Applicable materials: Suitable for mixing plastic, dry hard, light aggregate concrete and all kinds of mortar, mortar mixing.
Application： Widely used in large and medium-sized prefabricated component factories and highway, bridge, water conservancy, wharf and other industrial and civil construction projects.
Product Introduction
1.HZS25 concrete mixing plant is a simple small concrete mixing plant with automatic feeding function, which is a semi-automatic concrete mixer composed of JS500 forced mixer, feeding, batching, electrical control and steel structure.
2. This kind of simple mixing plant has the double superiority of single machine used independently and PLD series batching machine composed of concrete mixing plant with production capacity of 25m3/h or more, and it has simple structure, easy disassembly and convenient construction.
3.HZS25 concrete mixing plant adopts the latest design ideas of electronic weighing, microcomputer control, digital display and other control technologies, electronic weighing with buffer device and automatic compensation function, high measurement accuracy.
4. The sand and gravel feeding system is fed by large width herringbone belt with walking paths, which makes it an ideal choice for the majority of construction units to produce high-quality concrete.
Advantages
1、High efficiency: with JS forced double horizontal shaft concrete mixer, it can produce plastic, dry hard concrete and other kinds of concrete with high production efficiency.
2、Good quality: better raw materials at home and abroad are used in key components (such as mixing arms, blades, liners, spindles, etc.), and key parts provided by international manufacturers are used.
3、High calculation accuracy: adopting the latest design ideas of electronic weighing, microcomputer control, digital display and other control technologies, electronic weighing with buffer device and automatic compensation function, high measurement accuracy.
4、Low dust: adopting pulse type electric dust removal, large dust removal area, good effect, more green and environmental protection.
5、Low noise: the unloading gate is controlled by hydraulic oil pump, there are three stopping points and manually open the gate, no noise. The whole concrete production from measuring to mixing, discharging in a completely closed environment, green and environmental protection.
6、Good mixing effect: the liner plate and blade are made of high chrome wear-resistant cast iron, with reasonable angle design, good mixing effect, fast speed, even mixing of concrete, short mixing time, long service life of damaged parts, and convenient operation and maintenance.
Working Principle
Aggregate from the batching station aggregate silo discharge door unloaded into the aggregate metering hopper for measurement, measurement after unloading to the far turn of the flat belt, flat belt to the inclined belt conveyor, the inclined belt conveyor to the mixer on the top of the hopper waiting for instructions, at the same time, cement, as well as fly ash and so on, such as by the spiral conveyor conveyor to their respective metering hopper for measurement, water and admixture respectively by the water pump as well as admixture pumps to their respective metering hopper for measurement. Measurement. After the measurement of all kinds of materials, the control system sends out the instruction to start feeding into the mixer for mixing, after mixing is completed, open the discharge door of the mixer, and unload the concrete into the mixing transportation through the discharge hopper, and then enter the next working cycle.
Parameter
|
Model |
HZS25 Mixing Plant |
|
Production rate（m3/h） |
25 |
|
Main machine capacity（m3） |
0.5 |
|
Aggregate weighing. Large weighing value（kg） |
800 |
|
Cement weigher Large weighing value（kg） |
300 |
|
Water weighing Large weighing value（kg） |
150 |
|
Additives. Large weighing value（kg） |
40 |
|
Cement silo capacity（ton） |
100 |
|
Mixing power（kw） |
18.5 |
|
Lifting power（kw） |
5.5 |
|
Power of whole machine（kw） |
60 |
|
Discharge height（m） |
3.8（1.6） |
|
Aggregate metering precision（%） |
±2% |
|
Water metering precision（%） |
±1% |
|
Cement metering precision （%） |
±1% |
|
Additives metering precision（%） |
±1% |
