Slurry-Residue Dryer

Capacity: 1000-5000(kg/h)

Application: Widely used for drying brewery, vinasse, corn husk, and other materials.

Send E-mail Inquiry Now

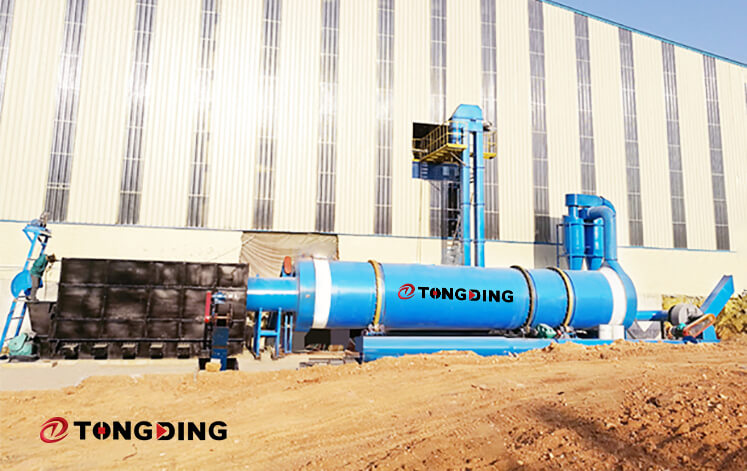

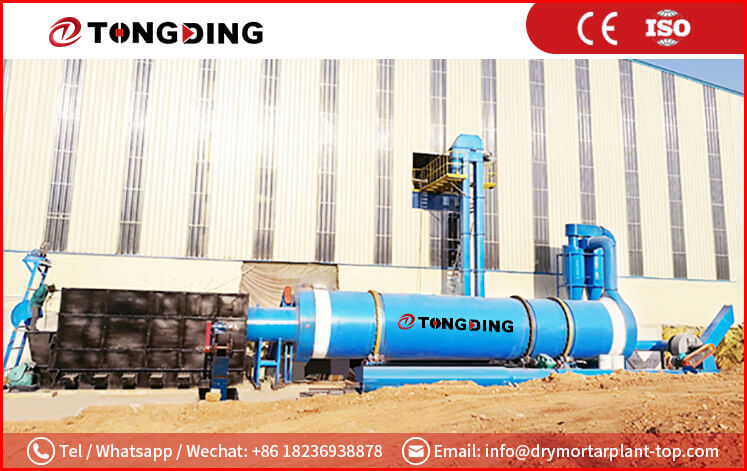

Product Introduction

The slurry-residue drying machine is designed to effectively reduce the moisture content of slurry-residue from 65% to 75% down to only 13% water content in the final product. This is achieved by using coal (or biomass, natural gas, coal gas) as the primary fuel source to generate high-temperature airflow, which serves as the drying medium.

The machine employs an electromagnetic speed adjustment system as the transmission system, which is complemented by an automatic temperature controller. These features ensure that different types of materials are dried efficiently within a short period of time while maintaining their original color, quality, taste, and nutrient content.

Working Principle

The material processing procedure involves transferring the material, which typically contains around 60% to 75% water, into the stirring drum dryer using a screw conveyor. The material is then concurrently dried through a series of steps.

Firstly, the material is raised and spread, and then moved helically within the drum. The internal stirring blades of the dryer then fully stir and scatter the material, ensuring even drying.

As the material continues to move through the drum, it is warmed up and dehydrated before being transmitted out of the drum in its dried form.

Parameter

Model	Daily Capacity(t/d)	Daily output(t/d)	Evaporation Capacity (t/h)	Total Power (kw)	Total Weight (kg)	Plant Space(m²)	Raw Material Moisture(%)	Dried Material Moisture(%)	Drying Temperature (℃)
TDOPJ15	33.6	15.6	0.75	32	15000	5m*14m	60±5%	12-15%（ Adjustable）	350-550℃
TDOPJ19	40.8	19.2	0.90	40	17000	5m*14m
TDOPJ27	58.9	27.7	1.30	55	21500	6m*16m
TDOPJ61	131.4	61.8	2.90	95	26500	8m*16m
TDOPJ68	145.0	68.2	3.20	100	28500	8m*16m
TDOPJ78	167.7	78.9	3.70	125	37000	10m*16m
TDOPJ96	204.0	96.0	4.50	145	41000	10m*18m
TDOPJ116	247.0	116.2	5.45	165	45500	10m*20m
