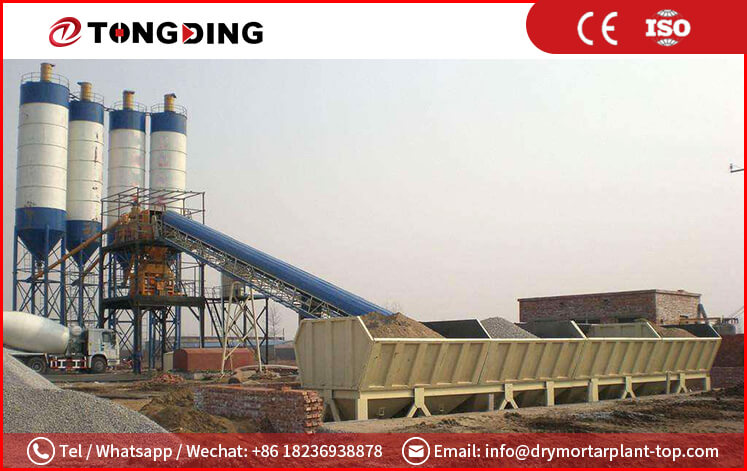

HZS120 Concrete Mixing Plant

Theoretical production capacity: 120m³/h

Overall dimension: 55885x20200x21600mm

Mixer Model: JS2000

Batching machine model: PLD3200

Total power: 210Kw

Standard discharging height: 4m

Application:HZS120 concrete mixing plant is widely used in large and medium-sized prefabricated component factories, highways, bridges, water conservancy, wharves and other industrial and civil construction projects.

Product Introduction

1. The theoretical productivity of HZS120 concrete mixing plant is 120m3/h, which is also called 2-party mixing plant, equipped with the main machine of JS2000 forced double horizontal shaft concrete mixer, the nominal capacity of the mixer is 2000L, and the batching machine is PLD3200.

2. The whole set includes double horizontal shaft mixer, batching machine, cement silo and screw conveyor, conveyor belt, microcomputer control room.

3. It can produce various kinds of concrete such as plastic and dry hard concrete, with high production efficiency, short mixing time and beautiful appearance, widely used in large and medium-sized building construction, road and bridge, as well as precast plants producing concrete products, and it is an ideal equipment for producing commercial concrete.

Working Principle

1)Aggregate from the batching station aggregate silo unloading door unloaded into the aggregate metering hopper for measurement, measurement after unloading to the far turn of the flat belt, flat belt to the inclined belt conveyor, the inclined belt conveyor to the mixer on the top of the hopper waiting for instructions.

2)At the same time, cement, as well as fly ash and so on, such as by the spiral conveyor conveyed to their respective metering hopper for measurement, water, as well as admixture by the pump and additives were pumped to their respective metering hopper for measurement.


4)After the measurement of all kinds of materials, the control system sends out the instruction to start feeding into the mixer for mixing.

5)After mixing is completed, open the discharge door of the mixer, and unload the concrete into the mixing transportation through the discharge hopper, and then enter the next working cycle.


Rated capacity


Aggregate type


Mixer model


Discharge height


Mixing electric power


Installed capacity


Mixing cycle


Aggregate weighing range and precision


Nominal capacity of mixer


Cement weighing range and precision


Powder bin capacity


Fly ash weighing range and precision


Batching machine capacity


Water weighing range and precision


Aggregate bin capacity


Weighing range and accuracy of additives
