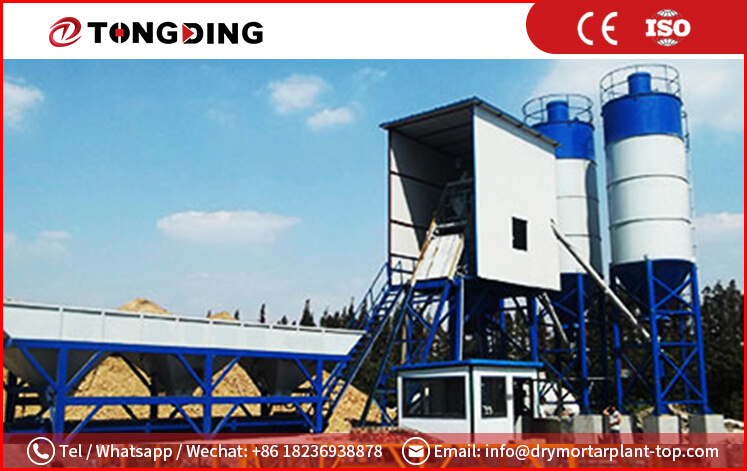

HZS35 Concrete Mixing Plant
Theoretical production capacity：35m³/h
Dimensions：12922x13000x17245mm
Model：JS750
Model of batching machine：PLD1200
Total Power：72Kw
Standard Discharge Height：1.6-3.8m
Applicable materials: dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete.
Application： Widely used in large and medium-sized prefabricated component factories and highway, bridge, water conservancy, wharf and other industrial and civil construction projects.
Product Introduction
1.HZS35 concrete mixing plant is also called simple HZS35 mixing plant,35 mixing plant uses 0.75 square of concrete mixer (JS750) per discharge, each cycle cycle is 72 seconds, with the batching machine, the theoretical productivity of 35m3/h.
2.HZS35 simple mixing plant adopts full automation configuration, which is composed of the combination of material conveyor, mixing host and batching machine.
3.Adopting combined structure and unit modularization, it is very convenient to install and relocate.The aggregate batching of HZS35 concrete mixing plant adopts PLD1600 concrete batching machine, with accurate measurement and high productivity, which is widely used in highways, bridges, power stations, dam construction projects and other projects where field construction work exists.
4.Users can also be equipped with their own dump trucks, dump trucks, mixer trucks to use, but also according to the user's special requirements for the conversion to meet user needs Concrete mixer host is not only used in concrete construction projects.
5.It can be used alone or as a supporting machine of mixing plant (building).
Working Principle
1）Aggregate from the batching station aggregate silo unloading door unloaded into the aggregate metering hopper for measurement, measurement after unloading to the far turn of the flat belt, flat belt to the inclined belt conveyor, the inclined belt conveyor to the mixer on the top of the hopper waiting for instructions.
2）At the same time, cement, as well as fly ash and so on, such as by the spiral conveyor conveyed to their respective metering hopper for measurement, water, as well as admixture by the pump and additives were pumped to their respective metering hopper for measurement.
3）Measurement.
4）After the measurement of all kinds of materials, the control system sends out the instruction to start feeding into the mixer for mixing.
5）After mixing is completed, open the discharge door of the mixer, and unload the concrete into the mixing transportation through the discharge hopper, and then enter the next working cycle.
Parameter
| HZS35 Concrete Mixing Plant | ||
|
Rated capacity (m³/h) |
35 |
|
|
Main mixing machine |
Model |
JS750 |
|
Aggregate size |
≤80mm |
|
|
Main machine power |
30kw |
|
|
Capacity |
35m³/h |
|
|
Batching silo |
Model |
PLD1200 |
|
Power |
12---20kw |
|
|
Weighing range and precision |
Aggregate |
±2%kg |
|
Cement |
±1%kg |
|
|
Fly ash |
±1%kg |
|
|
Water |
±1%kg |
|
|
Additives |
±1%kg |
|
