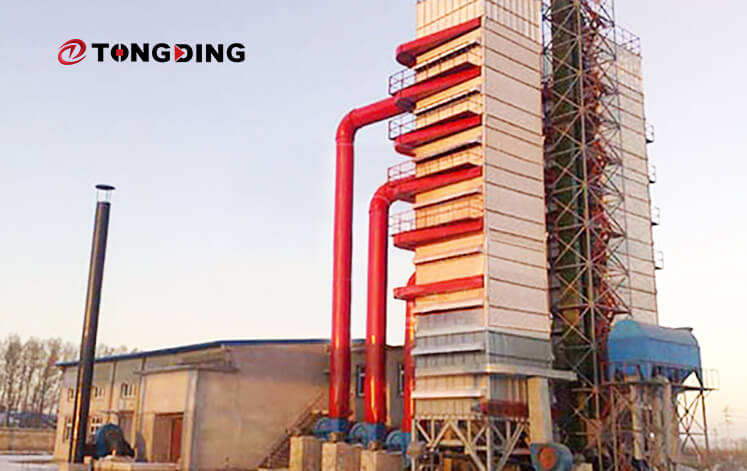

Mixed-Flow Tower Grain Dryer
Capacity: 100~500ton/d
Application: Rice, soybeans, wheat, sorghum, rapeseed, corn and oil crops.
Product Introduction
Designed and manufactured based on years of experience and local conditions, our mixed-flow tower grain dryers incorporate advanced techniques from foreign models. These machines are highly adaptable to different grains and environments, making them suitable for drying rice, soybeans, wheat, sorghum, rapeseed, corn, and oil crops. The rice drying machine employs clean hot air as a heat medium, specifically utilizing the hot air drying method. The heat source can be either a coal or oil hot air furnace. This drying machine facilitates continuous operation and outdoor installation, making it suitable for use in grain storage facilities and grains and oil processing factories.
Working Principle
The clean hot air serves as the heat medium for drying grain in mixed-flow tower grain dryers. The dryer's interior comprises angular ventilation boxes arranged in a staggered pattern, with grains flowing downward through them. The hot air enters the intake angular box by passing through the grain layer and then flows downward through the grain layer from top to bottom.
Parameter
|
Model |
Capacity(t/d) |
Coal consumption(standard coal)(kg/h) |
Moisture Reduction(%) |
Heating medium |
Hot-blast temperature(℃) |
Max grain temperature (℃) |
Unevenness of drying(%) |
Increment of broken rate (%) |
Heat consumption per unit(kj/kgH2O) |
Loading capacity |
Dryer Dimension(M) |
Dryer Height(M) |
|
TDOPH100 |
100 |
60～230 |
4～16 |
Clean hot air |
Corn, soybean<120, rice<65 |
55 |
< 2 |
< 0.5 |
5800 |
According to the environment, conditions, moisture reduction and configuration |
4×3 |
6~10 |
|
TDOPH150 |
150 |
90～345 |
4×3 |
8~15 |
||||||||
|
TDOPH200 |
200 |
120～460 |
5×3.2 |
13~17.5 |
||||||||
|
TDOPH250 |
250 |
150～575 |
5.5×3.2 |
14~18 |
||||||||
|
TDOPH300 |
300 |
180～690 |
5.5×4 |
14~19 |
||||||||
|
TDOPH400 |
400 |
240～1000 |
5.5×4.5 |
15~20 |
||||||||
|
TDOPH500 |
500 |
300～1380 |
6×6 |
16~22 |
